Temperature range: - 40 ℃ - + 85 ℃
Rated voltage: 500V AC
Rated current: 15A for terminals 1 to 3, 3A for terminals 4 to 11
Contact resistance: ≤ 10m Ω
Insulation resistance: ≥ 10m Ω under normal and wet conditions
Withstand voltage: AC 800V 50Hz, no breakdown or flashover for 1 minute
Contact: copper alloy tinning / gold plating
Protection grade: IP66
Mechanical life: 200 times
Maximum outer diameter: plug 16mm, socket 19mm
Fitting total length: 85mm, socket end 42mm, plug end 54mm
Specification of conductor used: 0.1mm ²~1.5mm ²

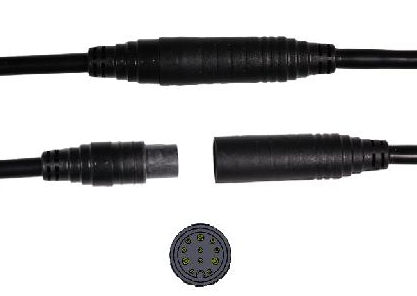

Application scope: used for power connection and signal transmission of electronic and electrical equipment (commonly used for connection between Hall motor and controller)
